Power controller Granch SBTC-PS - is developed for intrinsically safe power supply of SBGPS Master base stations and other technical means

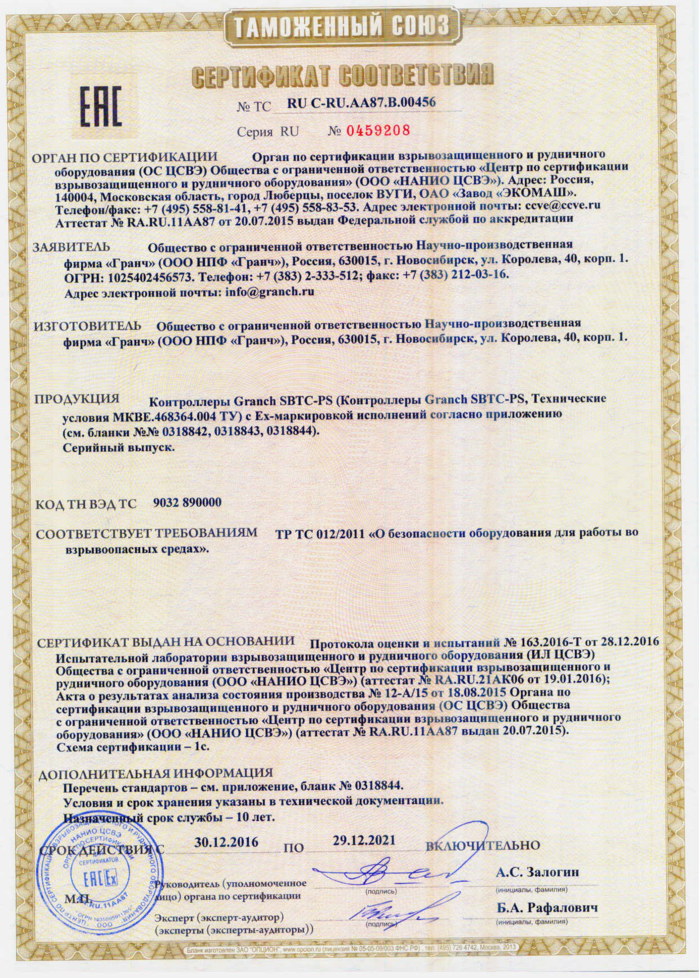

Сertificate of conformity TR CU № RU C-RU.AA87.B.00456.

The controller is available in the following versions:

  • Granch SBTC-PS1 – with one power supply unit;
  • Granch SBTC-PS2 – with two power supplies.

The power supply generates intrinsically safe voltages for powering external equipment.


Технические характеристики:

  • Output intrinsically safe DC voltage of the power line "60 V" - from 56 to 65 V;
  • Number of power lines "60 V" - 12;
  • The maximum current in the power line "60 V" - 150 mA;
  • The output intrinsically safe DC voltage of the power line "12 V" - from 12 to 15 V;
  • Number of power lines "12 V" - 1;
  • The maximum current in the supply line is "12 V" - 1.2 A;
  • Power for the controller - from AC mains with a frequency of 50 Hz and voltage from 105 to 170 V;
  • It is possible to supply power from two independent AC mains feeders;
  • Power consumption: SBTC-PS1 - no more than 370 W, SBTC-PS2 - no more than 740 W;
  • Level of explosion protection in accordance with GOST 31610.0-2014 - special explosion-proof electrical equipment with RO marking PB Ex d ia [ia] I;
  • Operating mode - continuous;
  • If external power is lost, the controller automatically switches to the backup power source;
  • The operating time from the backup power source is not less than 16 hours;
  • MTBF - not less than 9700 hours;
  • Life time – 10 years.
